Adaptive-A
Description
Adaptive is a dynamic range, an example of optimisation for all types of workspaces. From individual offices to bench clusters, this range is ideal for teamwork configurations. It has all the little extras to simplify work

Adaptive-A desk with attached right hand side extension + mobile pedestal & cabinet roller door.

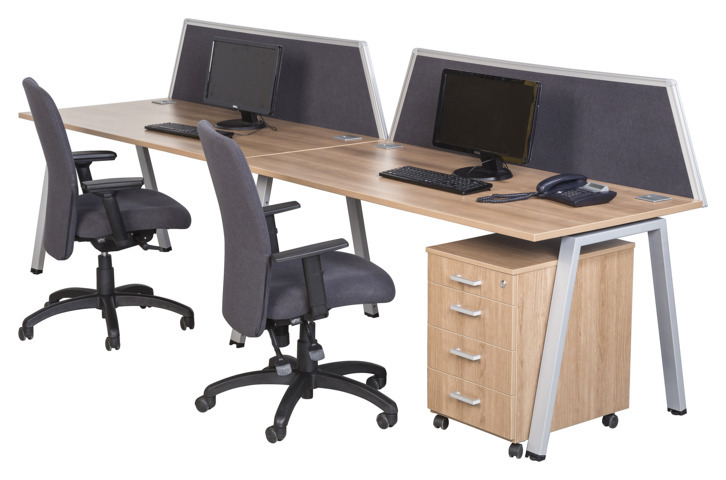

Adaptive-A side by side 2-way silver frame ,Harvard cherry melamine desk tops. Compose desk based screens + mobile pedestal.

Adaptive-A cluster 6-way white frame & white melamine desk tops. Sturdy desk-based screens

Adaptive-A desk modesty panel option and credenza side unit.

Adaptive-A cluster 4-way silver frame ,white melamine desk tops. Compose desk based screens.





Specifications
Easy to assemble and dismantle metal beam to metal leg construction
Metal beam: 38×38 square tube with 6mm thick end plates for fixing to metal leg, powder coated black
Legs: M8 flow drilled , powder coated black,silver,white options
Adjuster insert: Injection moulded nylon, side slot for easy levelling with M 8×30 mm round leveller. +- 20 mm
Adaptive Legs come in four different designs A,O,U, V shape
Desk top: melamine 16 mm ,22mm or 32 mm thickness with 2 mm ABS square edging profile.
10 mm gap: between the legs and desktop
Tops fixed: with injection moulded nylon saddle to the beam.
Power trays: mild steel folded and powder coated black supplied with all single frames. Attaches to the front beam.
Power wire basket: 180 wide x 95 deep galvanised is supplied standard between the face to face workstations ,the basket tray is able to be unhooked one side for cables to be layed in easier and its fixed to the 2 beam in the centre of the double leg frame.
