Adtec

Description

Adtec is a versatile Range that offers ideal solutions for single or multiple workstations. The adtec collection with its versatile shapes and colours brings freshness and creativity to your working environment.

Adtec A leg workstation with side extension top attached to desk high pedestal & modesty panel option

Adtec A 4-way cluster ,sturdy desk base screens

Adtec O leg workstation with side pedenza.

Adtec A 4-way cluster round end tops, shared leg and sturdy desk base screens

Adtec A 6-way cluster round end tops, shared leg and sturdy desk base screens

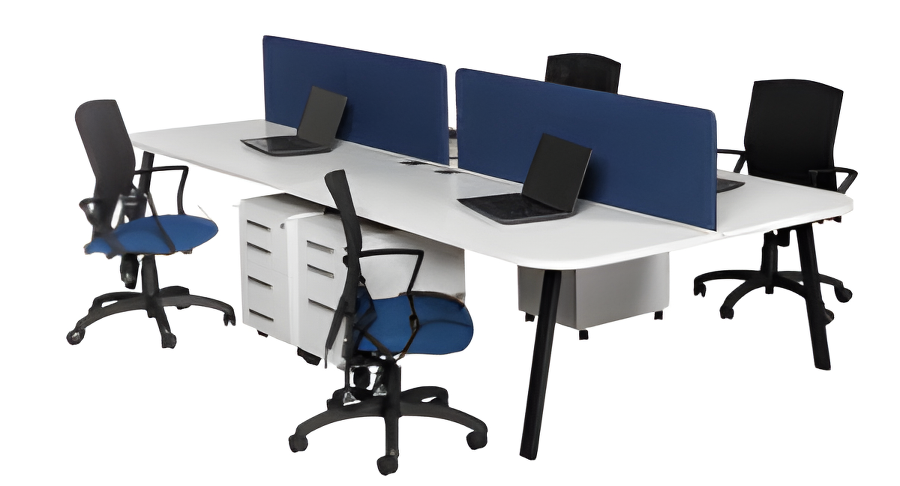

Adtec A 4-way cluster round end tops, sturdy desk base screens

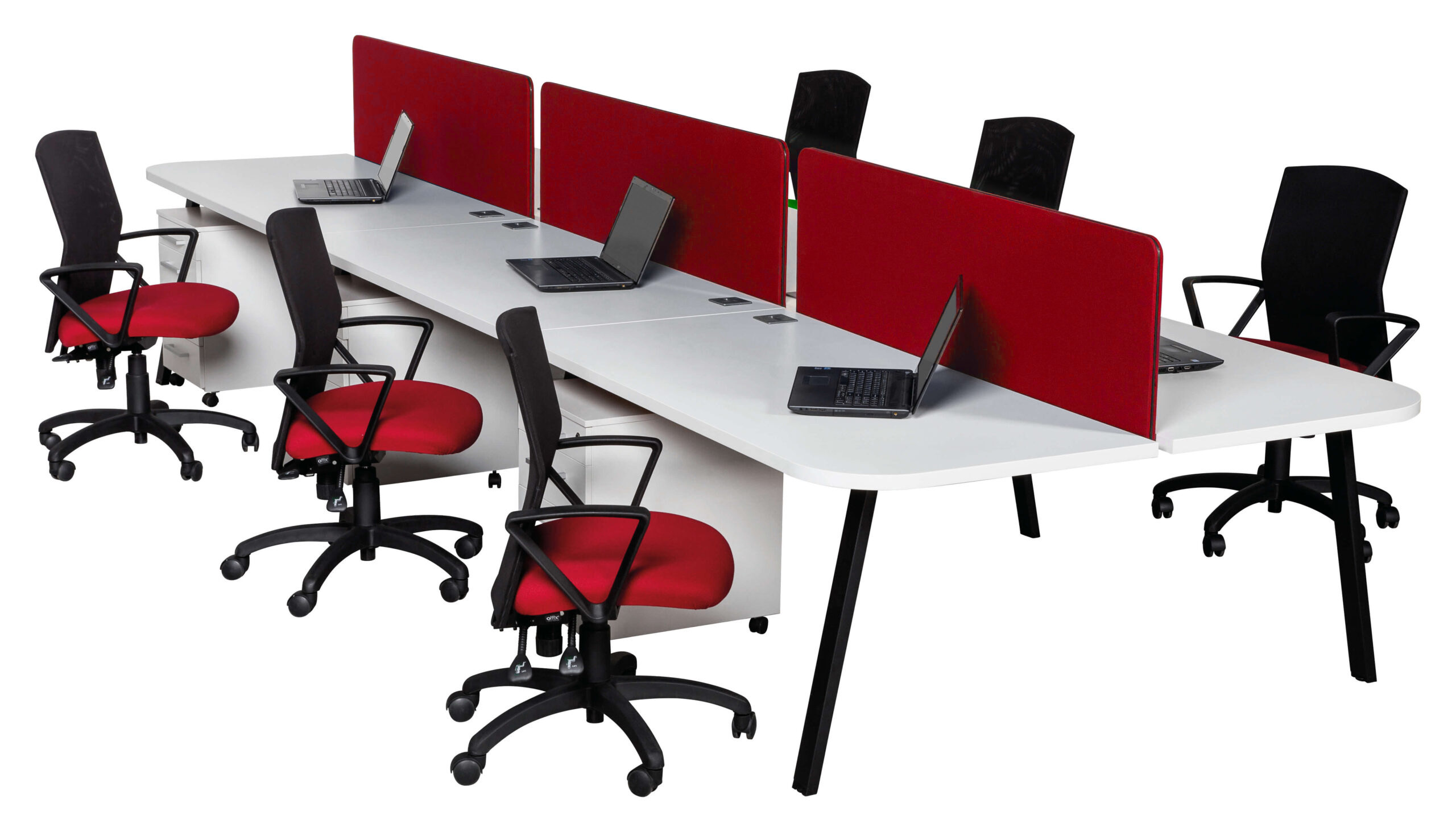

Adtec A 6-way cluster round end tops, sturdy desk base screens

Adtec U 4-way workstation , sturdy screens

Adtec U leg detail

Adtec O leg detail

Adtec A leg detail

Specifications

Easy to assemble and dismantle metal bracket to under top pre-drilled holes

Legs metal tube 60x30x2 mm wall thickness, M8 flow drilled , powder coated black, silver,white options
Adjuster insert Injection moulded nylon, side slot for easy levelling with M 8×30 mm round leveller. +- 20 mm
Adtec legs are available in 4 different designs – A,O,U and V

Desk top melamine 32 mm thickness with 2 mm ABS square edging profile.
6mm gap between the legs and desktop

Tops fixed with euro screws to leg brackets

Wire basket 180 wide x 95 deep galvanised is optional between the face to face workstation ,the basket tray is able to be unhooked one side for cables to be layed in easier. Single desk power trays option and single wire basket with brackets available

742 High for 32 mm desk top thickness
Width: Single desk 700, 750, 800, 900 mm
Length:1200,1350,1600,1800,2000 mm

Standard face to face bench sizes Width
Face to Face : 1425, 1525,1625 mm
Length:1200,1350,1600,1800
L-Extension sizes Width : 600
Length:1200
