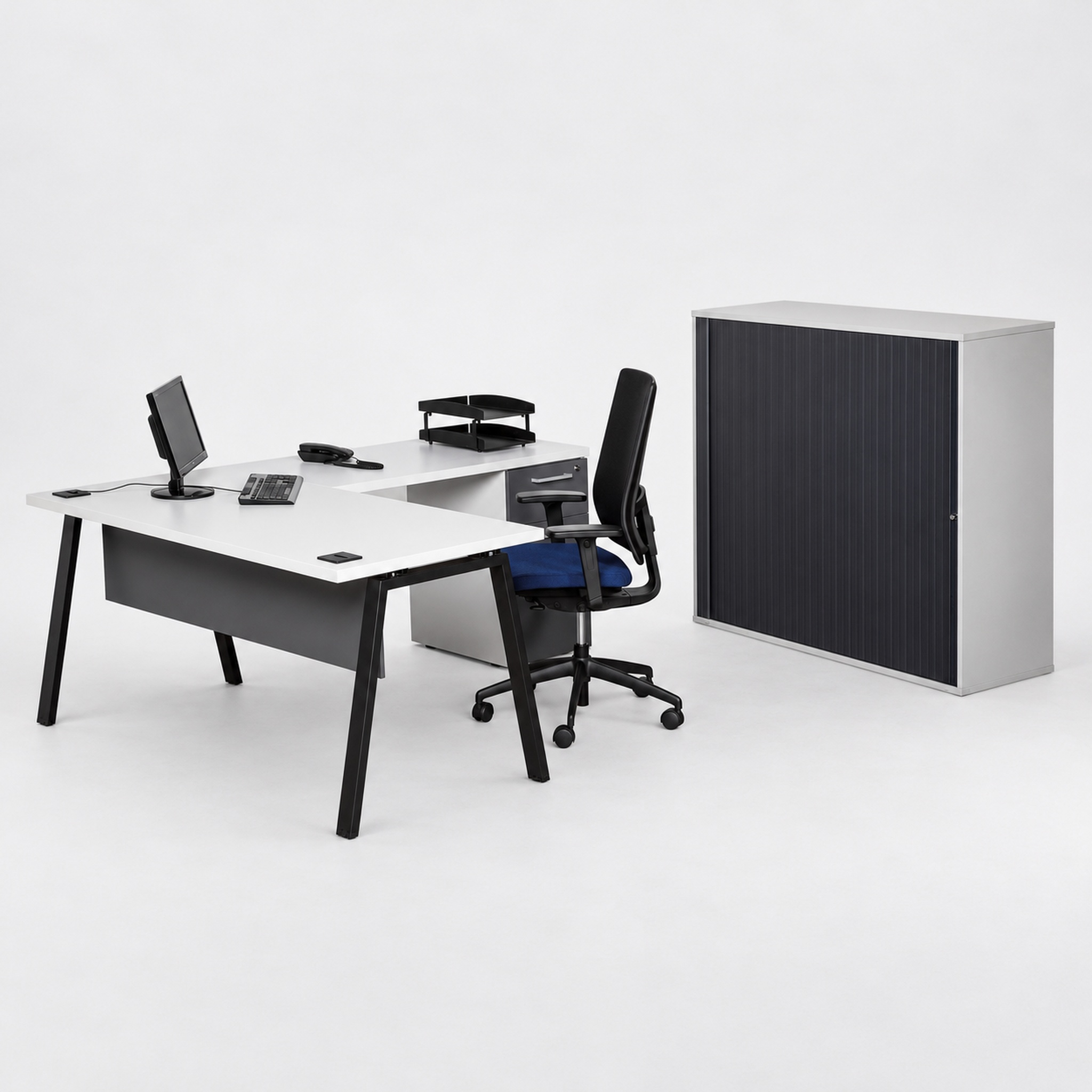

Adtec A Leg Workstation
Adtec is a versatile Range that offers ideal solutions for single or multiple workstations. The adtec collection with its versatile shapes and colours brings freshness and creativity to your working environment.
Product detail:
Adtec O leg workstation with side pedenza.
Tell us what you need. Our team will help with quantities, finishes and configuration.
View specificationsThe details
The product details.
Explore the product features and specifications, or ask our team about the configuration you need.
Ask our teamSpecifications
Easy to assemble and dismantle metal bracket to under top pre-drilled holes
Legs metal tube 60x30x2 mm wall thickness, M8 flow drilled , powder coated black, silver,white options
Adjuster insert Injection moulded nylon, side slot for easy levelling with M 8x30 mm round leveller. +- 20 mm
Adtec legs are available in 4 different designs – A,O,U and V
Desk top melamine 32 mm thickness with 2 mm ABS square edging profile.
6mm gap between the legs and desktop
Tops fixed with euro screws to leg brackets
Wire basket 180 wide x 95 deep galvanised is optional between the face to face workstation ,the basket tray is able to be unhooked one side for cables to be layed in easier. Single desk power trays option and single wire basket with brackets available
742 High for 32 mm desk top thickness
Width: Single desk 700, 750, 800, 900 mm
Length:1200,1350,1600,1800,2000 mm
Standard face to face bench sizes Width
Face to Face : 1425, 1525,1625 mm
Length:1200,1350,1600,1800
L-Extension sizes Width : 600
Length:1200
