Connect A

Description

Beauty lies in simplicity and Connect combines a clean and minimal aesthetics with great functionality.

The Connect shared leg system reduces costs to a minimum. Metal-on-metal construction and reduced assembly time.

Choose from 3 leg frame options: connect-U, angled A and loop O

Connect-A Single Desk

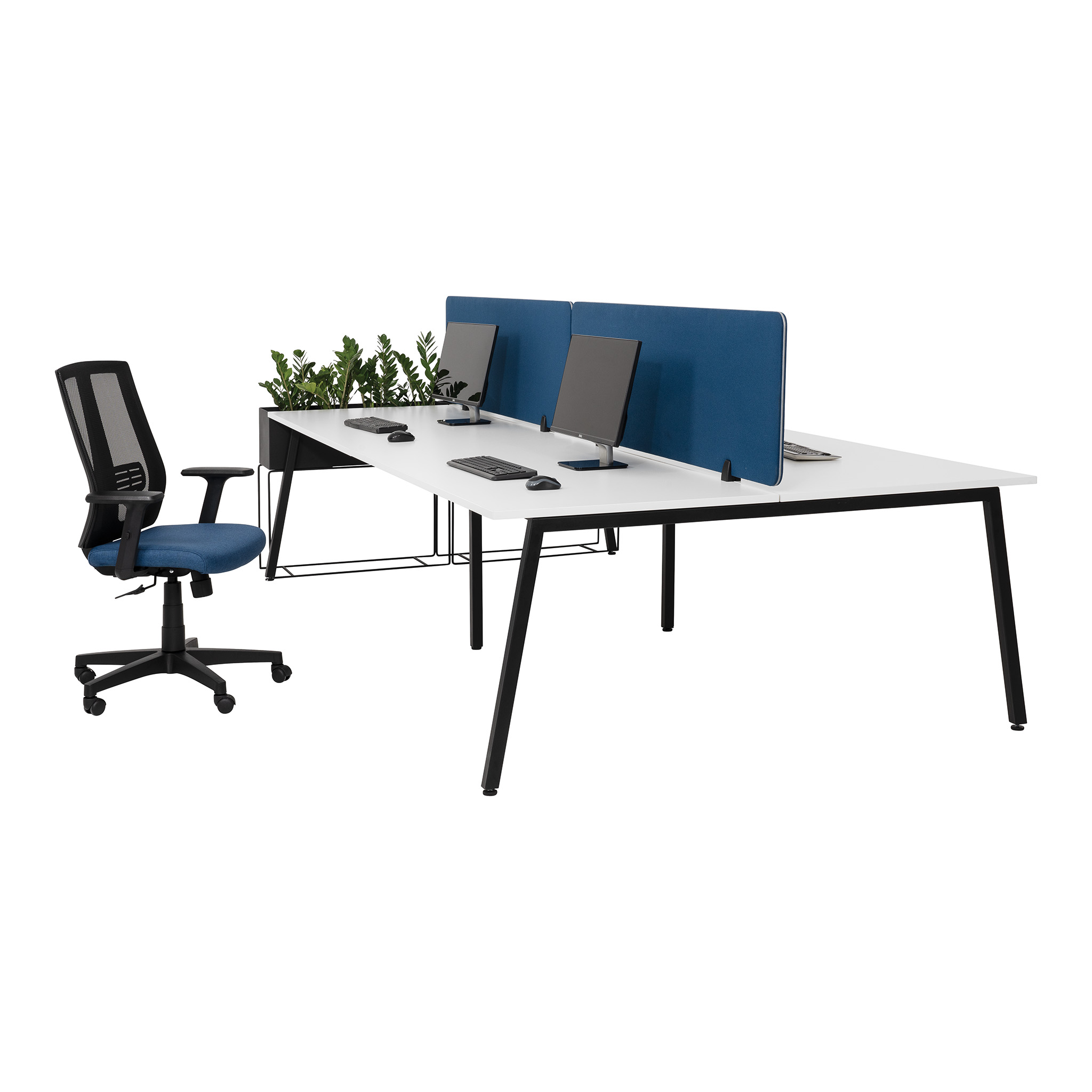

Connect-A face to face 4-Way workstation, black frame ,white tops black abs square edge ,sturdy desk based screen options

Specifications

Easy to assemble and dismantle metal beam to metal leg construction

Metal beam 38×38 square tube with M 6 bush for fixing to metal leg, powder coated black

Legs metal tube 38×38 ,metal formed brackets welded to tube for beam assembly , powder coated black,silver,white options

Adjuster insert Injection moulded nylon 38 square with M 8×30 mm round leveller.

Desk top melamine 22mm or 32 mm thickness with 2 mm ABS square edging profile.

4 mm gap between the legs and desktop

Power trays mild steel folded and powder coated black optional on connect frames

Power wire basket 180 wide x 95 deep galvanised is optional

Standard desk width,lengths & Height

732 High for 22 mm desk top thickness
742 High for 32 mm desk top thickness
Width: Single desk 750;800 mm
Length:1200;1350;1600;1800 mm
Standard face to face bench sizes
Width Face to Face : face to face 1525;1625 mm
Length:1200;1350;1600;1800
