Connect-u Desk
Beauty lies in simplicity and Connect combines a clean and minimal aesthetics with great functionality.
The Connect shared leg system reduces costs to a minimum. Metal-on-metal construction and reduced assembly time.
Choose from 3 leg frame options: connect-U, angled A and loop O
Product detail:

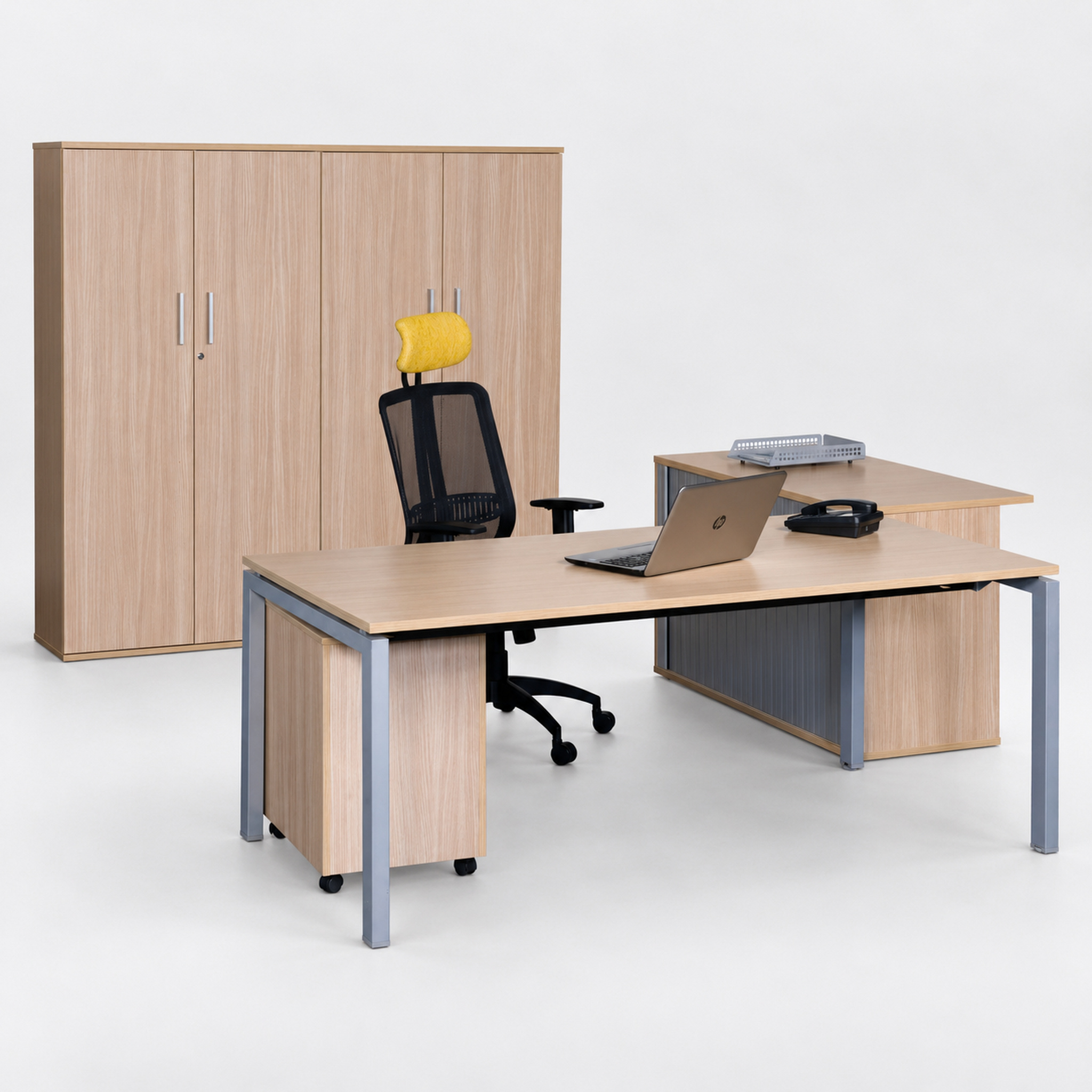

Connect-U desk with free standing roller door credenza & mobile pedestal.
Tell us what you need. Our team will help with quantities, finishes and configuration.
View specificationsThe details
The product details.
Explore the product features and specifications, or ask our team about the configuration you need.
Ask our teamSpecifications
Easy to assemble and dismantle metal beam to metal leg construction
Metal beam 38x38 square tube with M 6 bush for fixing to metal leg, powder coated black
Legs metal tube 38x38 ,metal formed brackets welded to tube for beam assembly , powder coated black,silver,white options
Adjuster insert Injection moulded nylon 38 square with M 8x30 mm round leveller.
Desk top melamine 22mm or 32 mm thickness with 2 mm ABS square edging profile.
4 mm gap between the legs and desktop
Power trays mild steel folded and powder coated black optional on connect frames
Power wire basket 180 wide x 95 deep galvanised is optional
Standard desk width,lengths & Height
732 High for 22 mm desk top thickness
742 High for 32 mm desk top thickness
Width: Single desk 750;800 mm
Length:1200;1350;1600;1800 mm
Standard face to face bench sizes
Width Face to Face : face to face 1525;1625 mm
Length:1200;1350;1600;1800
Additional information
| Product Types | Evo Desk, Evo Executive Workstation, Evo Table, Evo Workstation |
|---|
Catalogue & product support
Explore the full catalogue, or contact Offix for technical drawings and product files.
Download the Offix catalogueProduct support
Need product files?
Ask our team for available images, technical information, CAD or Revit/BIM files for this item.
